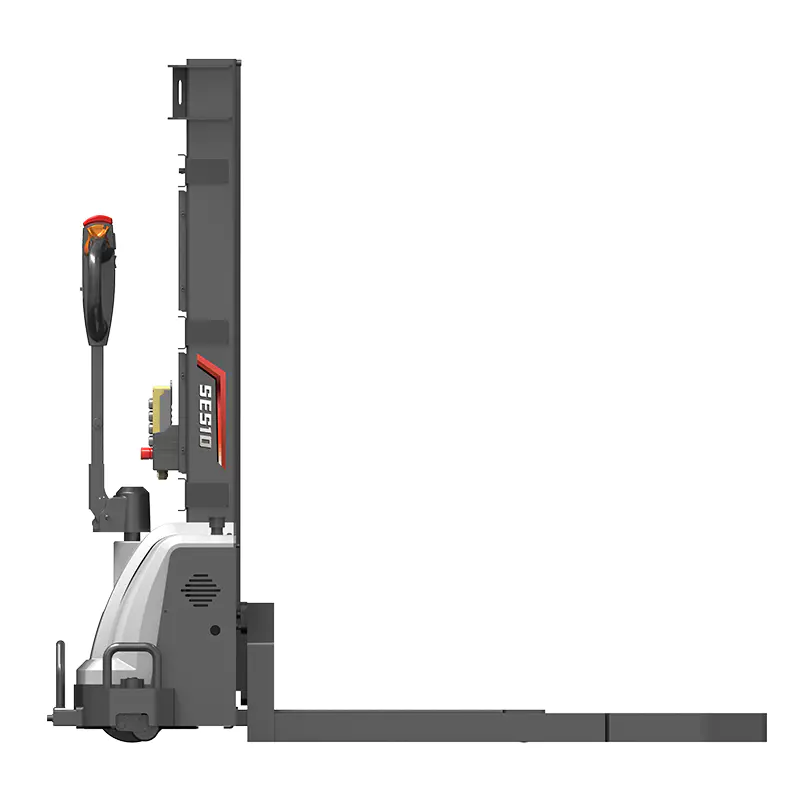

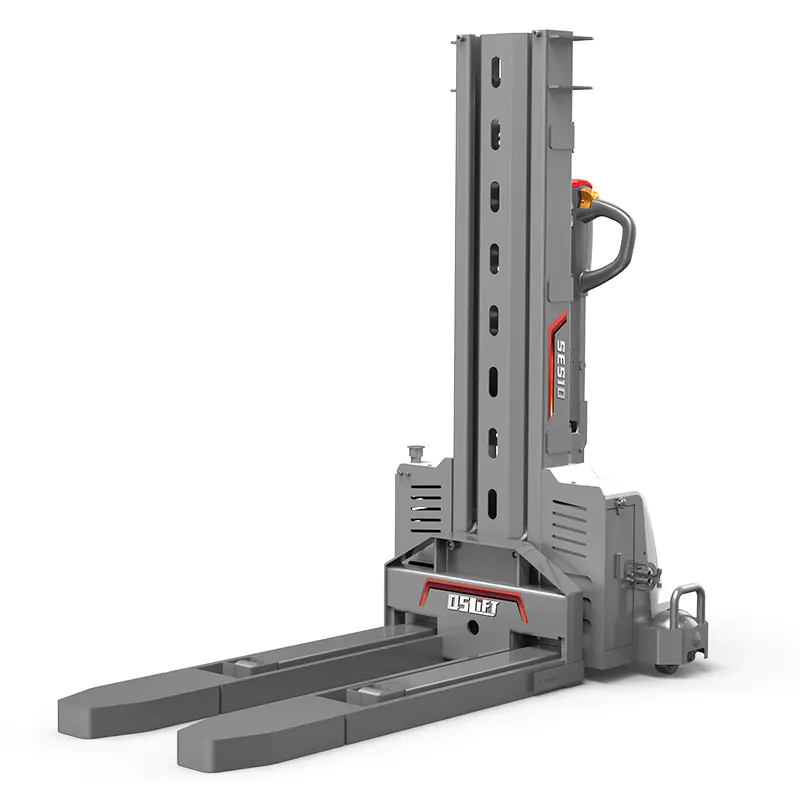

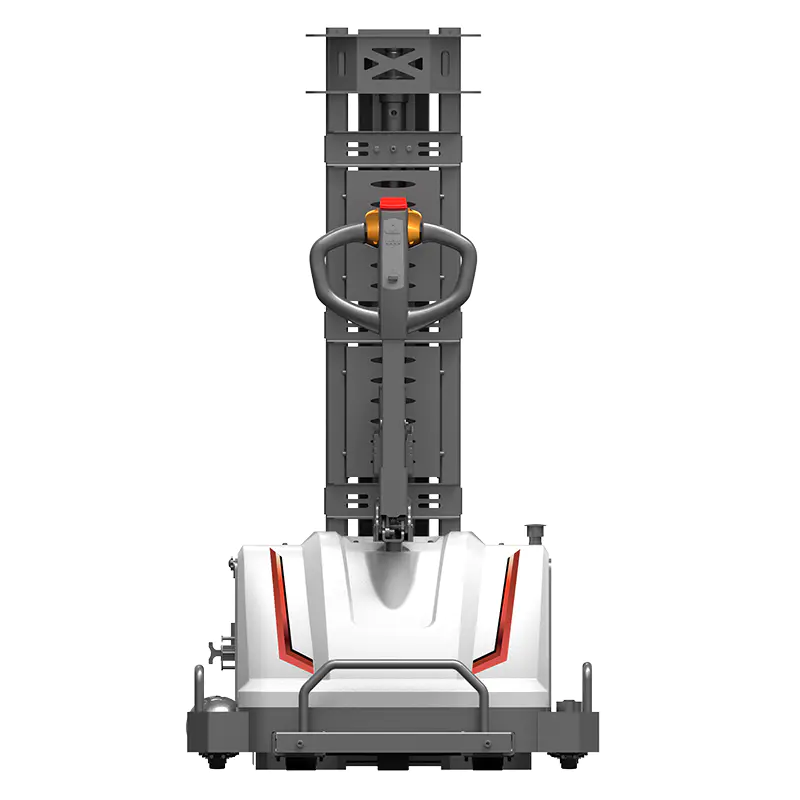

QSLiFT SES10/SES12/SES15 Electric Self-Lifting Stacker
Click here to download the product manual.

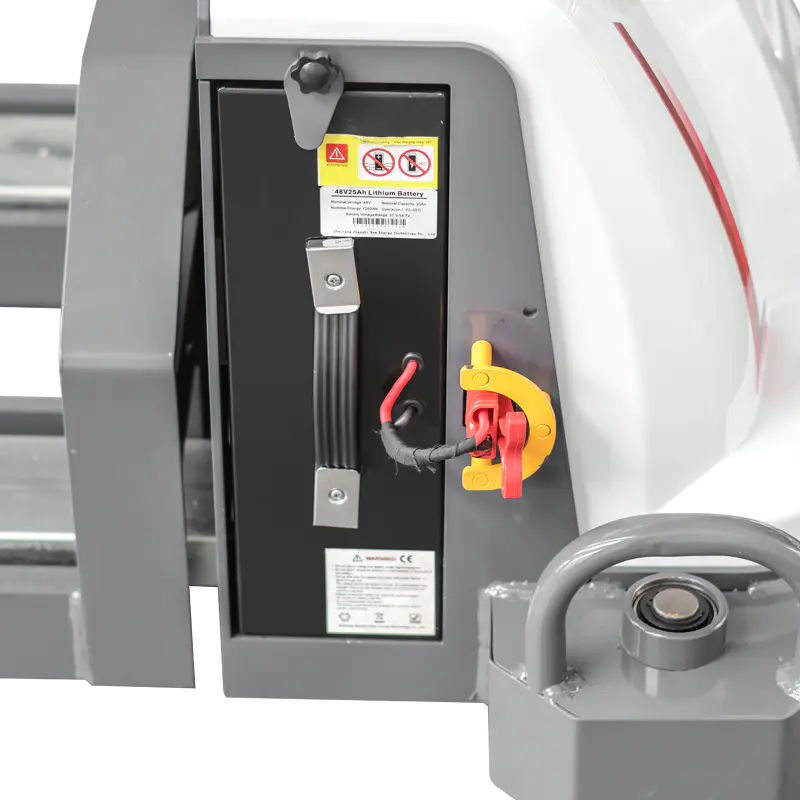

QSLiFT SES10/SES12/SES15 electric self-lifting stackers offer **1000KG/1200KG/1500KG rated load capacity** with a lift height range of 900mm-1650mm, engineered as a compact, efficient solution for freight loading and light material stacking. Designed for pedestrian operation, this lightweight self-lifting stacker streamlines loading tasks across diverse scenarios, ideal for small warehouses, retail stockrooms, and on-site cargo handling with its space-saving build and flexible maneuverability. Built with a **high-strength chassis** crafted by precision metal welding and bending technology, the stacker ensures long service life and structural toughness, paired with **solid metal legs** for enhanced load-bearing strength. Its **pipe-free hydraulic lifting system** eliminates oil leakage risks, boosting hydraulic reliability for uninterrupted daily use, while the integrated **CAN-BUS intelligent control system** provides real-time vehicle status monitoring and automatic fault diagnosis for added operational safety. Designed for user convenience and security, it features a **side-mounted replaceable battery** for easy charging and swaps, with multiple capacity options to match varying work hour demands. Standard safety and control features include an easily accessible emergency button, magnetic control for secure operation, magnetic movable key, turtle speed mode, emergency reverse, horn, battery indicator, and lift/lower controls; an optional pin-code handle is available for extra security management. In performance, the stacker delivers a **4.2km/h unladen travel speed (4.0km/h laden)**, with precise lift (0.06m/s laden/0.07m/s unladen) and lowering (0.1m/s laden/0.09m/s unladen) speeds for efficient loading. A tight **1180mm turning radius** enables effortless navigation in narrow spaces, and the electromagnetic service brake ensures instant, safe stopping. Fitted with durable PU wheels and DC speed control for smooth operation, it operates at ≤70dB(A) for a quiet working environment, with an ergonomic tiller design reducing operator fatigue during prolonged use. Compact, low-maintenance and highly adaptable, the SES10/SES12/SES15 combines reliable lifting performance, sturdy construction and user-centric design. It is the perfect professional tool for optimizing freight loading and light stacking tasks, delivering efficiency and flexibility across all small-scale material handling needs
| 1.1 | Model | SES10 | SES12 | |
| Characteristic | 1.2 | Power Type | Electric | Electric |
| 1.3 | Drive Type | Pedestrain | Pedestrain | |
| 1.4 | Capacity Q(kg) | 1000 | 1200 | |
| 1.5 | Load Centre c(mm) | 400 | 400 | |
| 3.1 | Material of Wheel | Polyurethane | Polyurethane | |
| Wheel | 3.2 | Size of Drive wheel | Φ190x70 | Φ190x70 |
| 3.3 | Size of balance roller | Φ75X35 | Φ75X35 | |
| 3.4 | Size of load roller | Φ80X70 | Φ80X70 | |
| 4.1 | Lifting Height h3(mm) | 900/1100/1300/1500 | 900/1100/1300/1500 | |
| Size | 4.2 | Min Mast Height h1(mm) | 1250/1450/1650/1850 | 1250/1450/1650/1850 |
| 4.3 | Height when Working h4(mm) | 2480/2680/2880/3080 | 2480/2680/2880/3080 | |
| 4.4 | Min Fork Height h13(mm) | 85 | 85 | |
| 4.5 | Overall Length I1(mm) | 1730 | 1730 | |
| 4.6 | Fork Size S/E/L(mm) | 60/195/1200 | 60/195/1200 | |
| 4.7 | Fork Width b5(mm) | 600 | 600 | |
| 4.8 | Ground Clearance m2(mm) | 10 | 10 | |
| 5.1 | Gradeability， loaden/unloaden % | 3-5 | 3-5 | |
| Performance | 5.2 | Brake | Electromagnetic Brake | Electromagnetic Brake |
| 5.3 | Power of Drive Motor kW | 0.75 | 0.75 | |
| 5.4 | Power of Lifting Motor kW | 2 | 2 | |
| 5.5 | Battery capacity V/Ah | 48v/25ah (30AH As Option) | 48v/25ah (30AH As Option) | |
| 5.6 | Weight of battery Kg | 30 | 30 | |
| 5.7 | Steering Power | Mechanical | Mechanical |
